<div class="e-titles">
<p>Specifications</p>
</div>
<div class="e-con">
<div class="ebg-tab">
<div class="head ebg-tab-head styleone">&nbsp;</div>
<div class="con ebg-tab-con active2">
<div class="list ebg-tab-con-item">
<table border="0" cellspacing="0" cellpadding="0">
<thead>
<tr>
<td>&nbsp;</td>
<td>EchoLife WA8021V5&nbsp;</td>
</tr>
</thead>
<tbody class="add-bg-default">
<tr>
<td>Interface&nbsp;</td>
<td>NNI: Wi-Fi or 1GE<br>UNI (Wi-Fi uplink): 2.4GHz&amp;5GHz WiFi+3GE<br>UNI (1GE uplink): 2.4GHz&amp;5GHz WiFi+2GE</td>
</tr>
<tr>
<td>Dimensions(H x W x D)&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;</td>
<td>65.5mm×105mm×105mm (without pads)</td>
</tr>
<tr>
<td>Weight (Without power adapter)&nbsp;&nbsp;</td>
<td>About 195 g</td>
</tr>
<tr>
<td>Rated Power Input for Power Adapter&nbsp;</td>
<td>100 - 240 V AC, 50/60 Hz</td>
</tr>
<tr>
<td>System power supply&nbsp;</td>
<td>&nbsp;12V DC, 1 A</td>
</tr>
<tr>
<td>Static power consumption<br><br></td>
<td>3.4 W</td>
</tr>
<tr>
<td>Max power consumption&nbsp;</td>
<td>7.8 W</td>
</tr>
<tr>
<td>Installation mode&nbsp;</td>
<td>On the desk</td>
</tr>
<tr>
<td><br><br>Operating temperature Operating<br><br></td>
<td>&nbsp;0°C - +40°C</td>
</tr>
<tr>
<td>humidity&nbsp;&nbsp;</td>
<td>5% RH to 95% RH (non-condensing)</td>
</tr>
<tr>
<td>Wi-Fi</td>
<td>IEEE 802.11 b/g/n (2.4GHz)<br>IEEE 802.11 a/n/ac (5GHz)<br>2×2 MIMO (2.4GHz&amp;5GHz)<br>Air interface rate：300 Mbps (2.4GHz)，867 Mbps (5GHz)</td>
</tr>
</tbody>
</table>
</div>
</div>
</div>
</div>

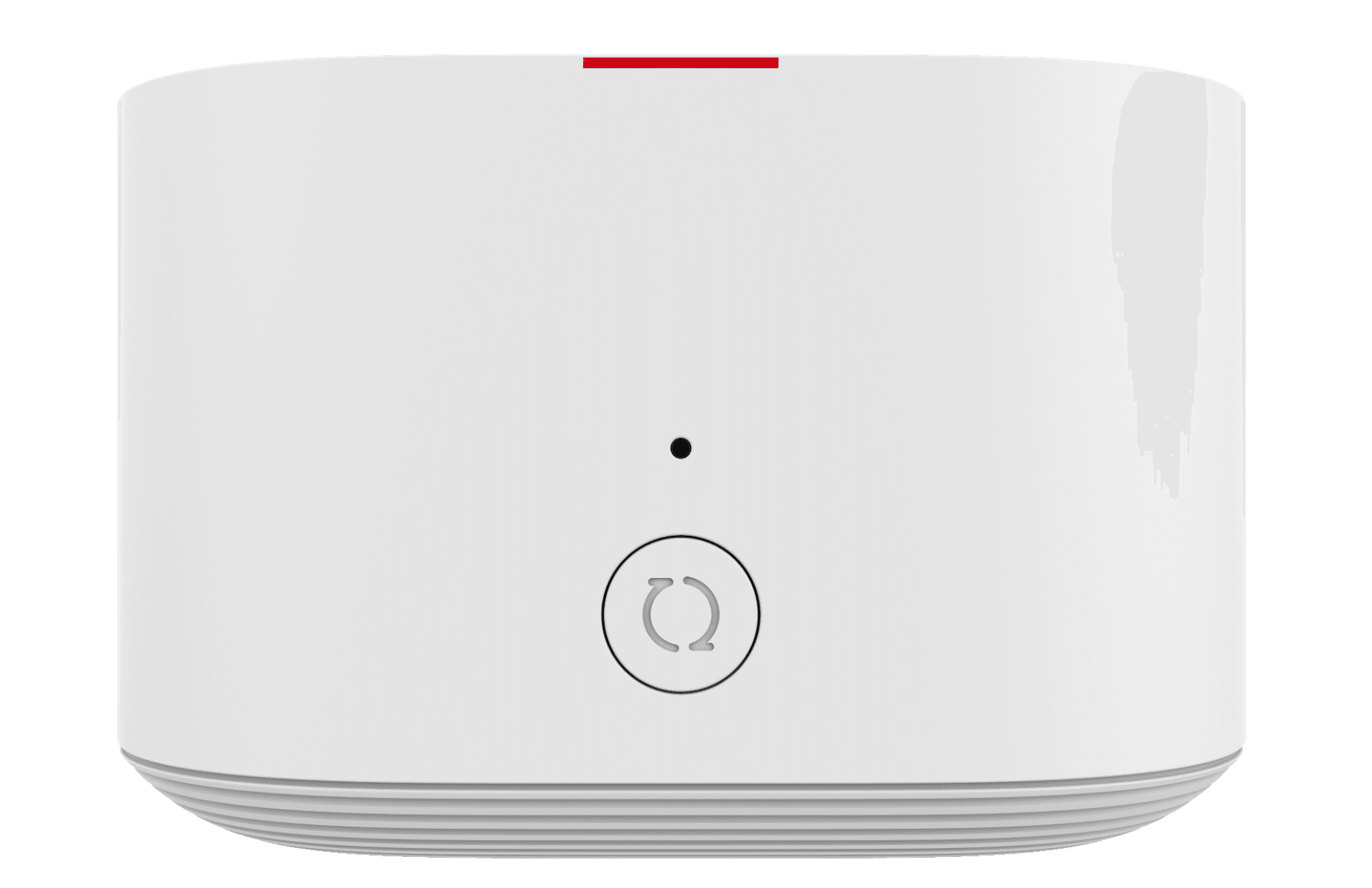

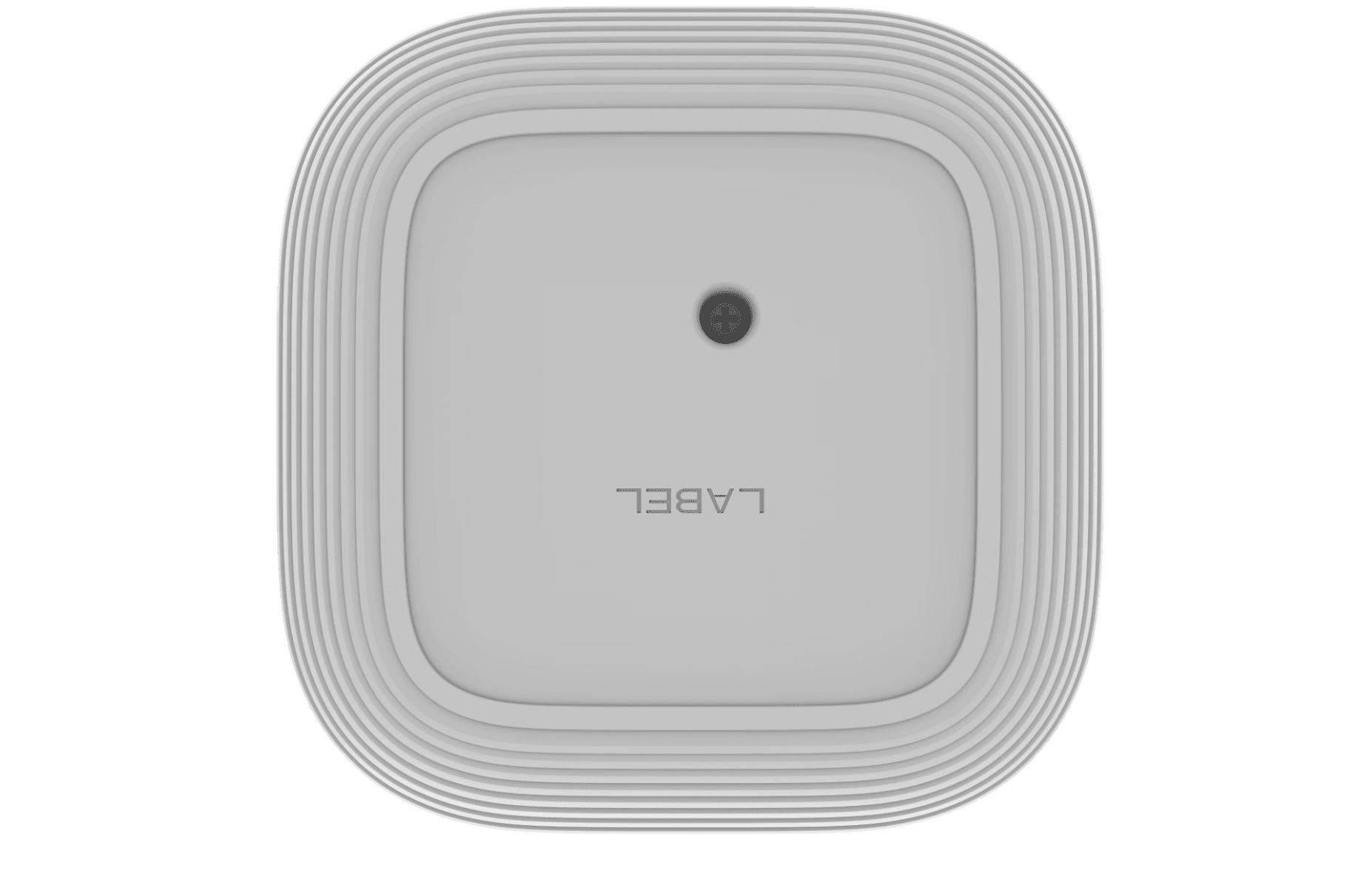

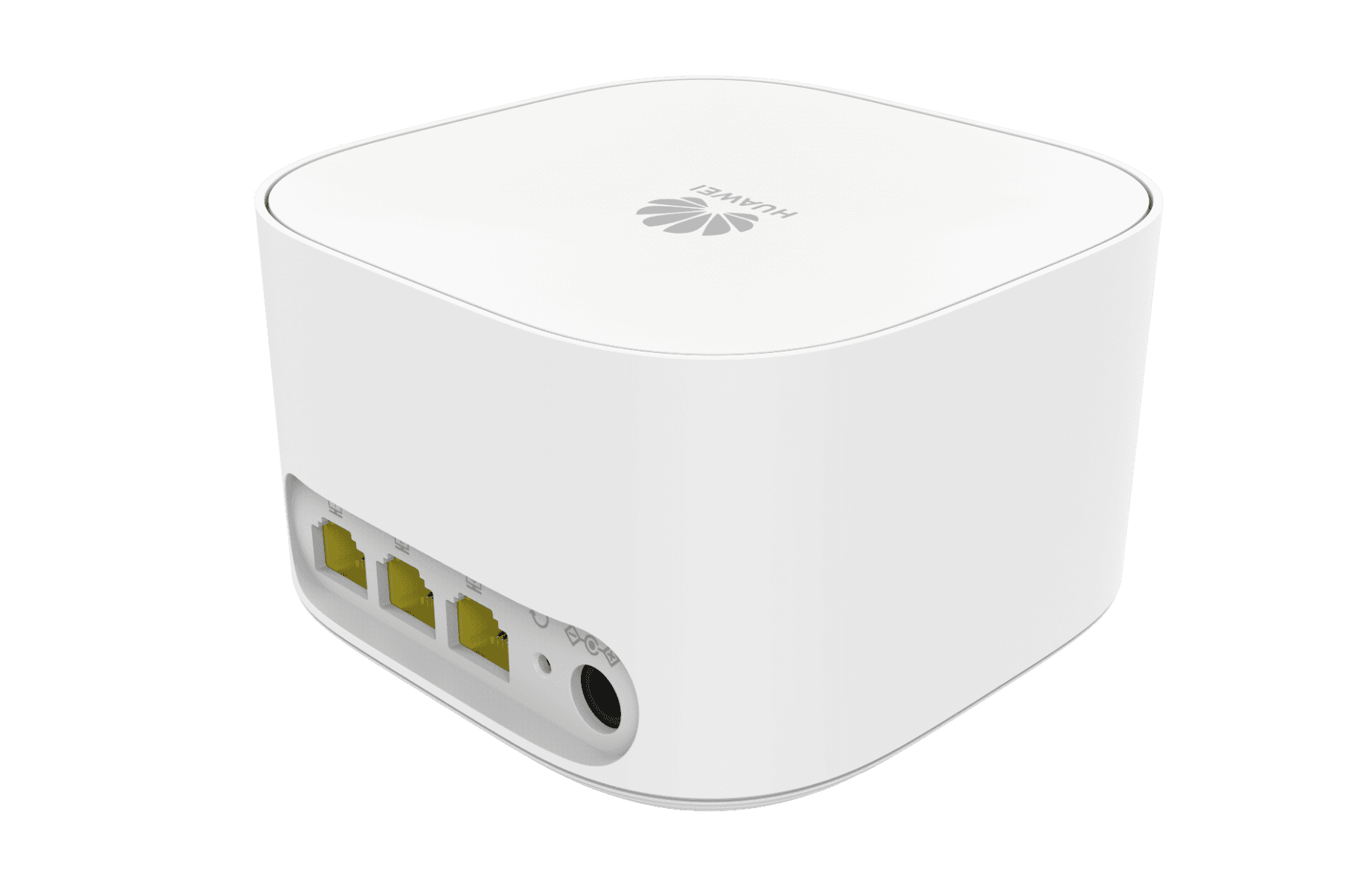

Huawei EchoLife WA8021V5 WiFi Extender

<p class="con">Huawei EchoLife WA8021V5 is an edge ONT which provides dual-band Gigabit Wi-Fi and Gigabit internet access for home users.</p>
<p class="con">Home Network</p>
<p class="text">▪ Mesh network (tree type)<br>▪ Plug and play,One-click pairing and automatic networking<br>▪ Automatic Wi-Fi configuration synchronization<br>▪ Wi-Fi roaming (802.11k/802.11v) within the home network</p>
<p class="con">Home Network Management</p>
<p class="text">▪ Remote management and maintenance<br>▪ Technician APP<br>▪ Management of mobile phone APPs of users</p>
<p class="con">Smart interconnection</p>
<p class="text">▪ 2 upstream modes: Ethernet upstream mode and Wi-Fi upstream mode</p>
