Chip

Apple M5 Max chip

• 18-core CPU with 6 super cores and 12 performance cores

• 32-core GPU

• Neural Accelerators

• Hardware-accelerated ray tracing

• 16-core Neural Engine

• 460GB/s memory bandwidth

Media Engine

• Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW

• Video decode engine

• Two video encode engines

• Two ProRes encode and decode engines

• AV1 decode

• Configurable to:

• M5 Max with 18-core CPU and 40-core GPU (614GB/s memory bandwidth)

Memory

Apple M5 Max chip

• 36GB unified memory

• Configurable to:

• 48GB, 64GB, or 128GB (M5 Max with 40-core GPU)

Storage

Apple M5 Max chip

• 2TB SSD

• Configurable to:

• 4TB or 8TB

Display

Liquid Retina XDR display

• 14.2-inch (diagonal) Liquid Retina XDR display;² 3024-by-1964 native resolution at 254 pixels per inch

XDR (Extreme Dynamic Range)

• 1,000,000:1 contrast ratio

• XDR brightness: 1000 nits sustained full-screen, 1600 nits peak³ (HDR content only)

• SDR brightness: up to 1000 nits (outdoor)

Color

• 1 billion colors

• Wide color (P3)

• True Tone technology

Refresh rates

• ProMotion technology for adaptive refresh rates up to 120Hz

• Fixed refresh rates: 47.95Hz, 48.00Hz, 50.00Hz, 59.94Hz, 60.00Hz

Configurable with:

• Nano-texture display

Battery and Power

M5 Max

• Up to 20 hours video streaming

• Up to 13 hours wireless web

• 72.4-watt-hour lithium-polymer battery

• 96W USB-C Power Adapter

• USB-C to MagSafe 3 Cable (2 m)

• Fast-charge capable with 96W or higher USB PD power source

Charging and Expansion

• SDXC card slot

• HDMI port

• 3.5 mm headphone jack

• MagSafe 3 port

• Three Thunderbolt 5 (USB-C) ports with support for:

• Charging

• DisplayPort

• Thunderbolt 5 (up to 120Gb/s)

• USB 4 (up to 120Gb/s)

External Display Support

M5 Max

• Supports up to four external displays over any combination of Thunderbolt and HDMI ports:

• Four displays up to a native resolution of 6K at 60Hz or 4K at 144Hz or

• Two displays up to a native resolution of 8K at 60Hz or 5K at 120Hz or 4K at 240Hz

• Supports up to four external displays over a single Thunderbolt port

• Simultaneously supports the built-in display at full native resolution

• Thunderbolt 5 (USB-C) ports support native DisplayPort 2.1 speeds

Video Playback

• Supported formats include HEVC, H.264, AV1, and ProRes

• HDR with Dolby Vision, HDR10+/HDR10, and HLG

Audio Playback

Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos

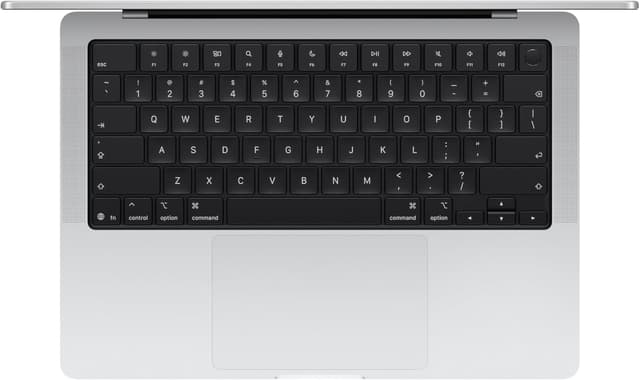

Keyboard and Trackpad

Backlit Magic Keyboard with:

• 78 (ANSI) or 79 (ISO) keys including 12 full-height function keys

• Touch ID

• Ambient light sensor

• Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures

Wireless

• Apple N1 wireless networking chip

• Wi-Fi 7 (802.11be)⁵

• Bluetooth 6

• Thread networking technology

Camera

• 12MP Center Stage camera with support for Desk View

• 1080p HD video recording

• Advanced image signal processor with computational video

Audio

• High-fidelity six-speaker sound system with force-cancelling woofers

• Wide stereo sound

• Support for Spatial Audio when playing music or video with Dolby Atmos on built-in speakers

• Spatial Audio with dynamic head tracking when using supported models of AirPods, AirPods Pro, and AirPods Max⁶

• Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming

• Voice Isolation and Wide Spectrum microphone modes for enhanced voice clarity in audio and video calls

• 3.5 mm headphone jack with advanced support for high-impedance headphones

• HDMI port supports multichannel audio output

Operating Requirements

• Line voltage: 100V to 240V AC

• Frequency: 50Hz to 60Hz

• Operating temperature: 50° to 95° F (10° to 35° C)

• Storage temperature: –13° to 113° F (–25° to 45° C)

• Relative humidity: 0% to 90% noncondensing

• Operating altitude: tested up to 10,000 feet (3000 meters)

• Maximum storage altitude: 15,000 feet

• Maximum shipping altitude: 35,000 feet

Size and Weight

• Height: 0.61 inch (1.55 cm)

• Width: 12.31 inches (31.26 cm)

• Depth: 8.71 inches (22.12 cm)

• Weight (M5 Pro): 3.5 pounds (1.60 kg)⁷

• Weight (M5 Max): 3.6 pounds (1.62 kg)⁷
